Tekin TEKTT2518
Pro4 Heavy-Duty brushless Motor 1.5D 4300kV

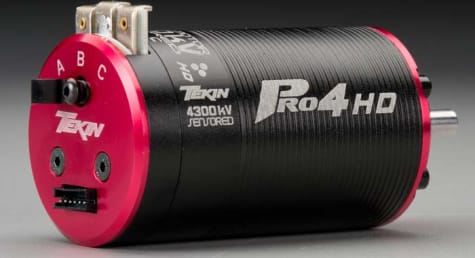

This is the Tekin Pro 4 HD 4300kV
1/10 scale 4x4 Short Course brushless Sensored Motor.
FEATURES:
Accomodates 2S - 4S LiPo power systems 4 pole, 12 slot hi-torque 550 motor design
CNC machined 6061-T6 billet aluminum heat sink can
Neodymium sintered magnets
High purity copper windings for greatest efficiency
Rebuildable
Dual plug sensor wire harness for use with all sensored systems
High RPM ABEC 5 oversize ball bearings
YOU WILL RECEIVE:
Tekin Pro 4 HD 4300kV Motor with Sensor WireREQUIREMENTS:
ESC such as the Tekin RX8, TEKM2300SPECIFICATIONS:
Motor length: 2.5" (62.5mm) Motor diameter: 1.4" (35.8mm)
Shaft
DIMENSIONS:
.60 x .196" (15.3 x 5mm) Weight: 7.8oz (221g)
Bearing
DIMENSIONS:
Front: 5x14x5mm / Rear: 5x11x5 Rotor diameter: 0.73" (18.5mm)
