Hot Racing TBR70T01
$28.88
in stock? NO
This item is on back-order. It's difficult to know when it will be available to ship.Black Internal Spring Air Shock 70mm

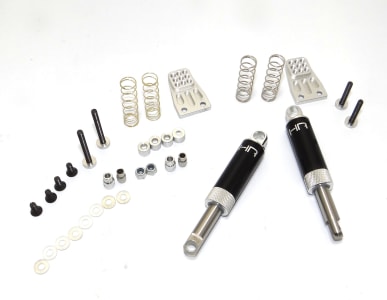

Hot Racing 70mm internal spring air damper shock set with shock towers (damper stays) for the Tamiya Bruiser or other R/C vehicle requiring 70mm air shocks
shock mount
- CNC machined aluminum shock bodies, black anodized
- CNC machined aluminum upper shock cap with o-ring seal, silver anodized
- CNC machined aluminum lower shock cap with shock shaft guide, silver anodized
- Precision machined 7mm stainless steel shock shaft for durability
- Double o-ring lower shaft seal
- Air damping
- Internal springs with three rates included: Gold (soft), Black (medium), Silver (stiff)
- All aluminum is anodized for durability, corrosion resistance, and great looks
- Two (2) assembled shocks
- Two (2) gold (soft) springs
- Two (2) black (medium) springs
- Two (2) silver (stiff) springs
- Two (2) 4.8mm ball mounts
- Two (2) 5.8mm ball mounts
- Four (4) 5x7mm offset spacers- Four (4) 3mm countersunk washers
- Four (4) 3x25mm flat head cap screws- Two (2) 3x20mm flat head cap screws- Eight (8) 3mm o-rings
- Two (2) M3 lock nuts
- Installation on vehicle
- Recommended to use Team Associated Green Slime ASC1105 on lower o-ring seals to assist sealing and increase smoothness
- Extended center to center length: 70mm
- Compressed center to center length: 51mm
- Overall length: 78mm
- Body diameter: 13mm
- Shaft diameter: 7mm- Shock tower overall height: 29.5mm
- Shock tower mounting holes to center upper shock mount hole: 19.5mm
- Shock tower mounting holes: 2x on 11mm centers
- These shocks are not oil filled. A light coating of thick grease works well to control bounce.
- Replacement o-rings are Hot Racing RTD48RR
description revised by: SN October 24, 2016
FEATURES:
shock mount
- CNC machined aluminum shock bodies, black anodized
- CNC machined aluminum upper shock cap with o-ring seal, silver anodized
- CNC machined aluminum lower shock cap with shock shaft guide, silver anodized
- Precision machined 7mm stainless steel shock shaft for durability
- Double o-ring lower shaft seal
- Air damping
- Internal springs with three rates included: Gold (soft), Black (medium), Silver (stiff)
- All aluminum is anodized for durability, corrosion resistance, and great looks
YOU WILL RECEIVE:
- Two (2) Bruiser multi mount shock mount- Two (2) assembled shocks
- Two (2) gold (soft) springs
- Two (2) black (medium) springs
- Two (2) silver (stiff) springs
- Two (2) 4.8mm ball mounts
- Two (2) 5.8mm ball mounts
- Four (4) 5x7mm offset spacers- Four (4) 3mm countersunk washers
- Four (4) 3x25mm flat head cap screws- Two (2) 3x20mm flat head cap screws- Eight (8) 3mm o-rings
- Two (2) M3 lock nuts
REQUIREMENTS:
- Recommended to use Team Associated Green Slime ASC1105 on lower o-ring seals to assist sealing and increase smoothness
SPECIFICATIONS:
- Compressed center to center length: 51mm
- Overall length: 78mm
- Body diameter: 13mm
- Shaft diameter: 7mm- Shock tower overall height: 29.5mm
- Shock tower mounting holes to center upper shock mount hole: 19.5mm
- Shock tower mounting holes: 2x on 11mm centers
COMMENTS:
- Replacement o-rings are Hot Racing RTD48RR
description revised by: SN October 24, 2016
