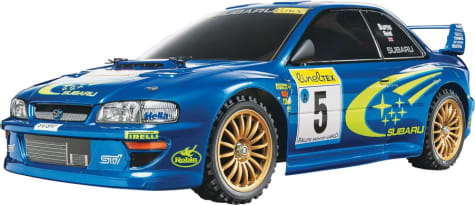

Tamiya brand 1/10 scale, Tamiya electric powered, radio controlled,
Suba. Impreza (Monte Carlo '99) On-Road Rally Car Kit.
Chassis: TT-02 ABS resin bathtub type minimizes contact with the road
upright assembly can be changed to give chassis an extra 4mm of
travel for Rally racing
Drive: Four wheel, shaft driven, with dogbones
Motor: Tamiya Torque Tuned 540 brushed with aluminum heat sink
Electronic Speed Control: Tamiya TBLE02S brushless compatible
Differentials: Four pinion resin gears
Wheels: Nylon construction, gold in color 12mm hex, 1.02 (26mm)
wide 2.00 (51mm) diameter, 16 spokes
Tires: Slick rubber with foam inserts
Suspension: Fully four wheel independent double wishbone
Shocks: Plastic body, friction, not oil filled
Body: Clear polycarbonate
Camber: Non-adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Caster: Adjustable front only, caster/toe-in refers to the angle
of the front suspension when viewed from the side of the car in
relation to the chassis
Steering: Bellcrank type
Front Bumper: Urethane
Suba. Impreza with 540 Brushed Motor, Tires, Foam Inserts, Wheels,
Clear Body, ESC, Decals and Instructions
Radio: 2-channel with high speed steering servo
Battery: 7.2V NiMh
Battery Charger: To match selected battery
Building and track equipment
Specs such as finished size of chassis not provided by manufacturer
Body;
length: 16.6 (421mm)
width: 7.5 (190mm)
height: 3.8 (98mm)
To upgrade to ball bearings order;
Qty. Size Location Qty Bearing Set
2 5x11mm Spur Gear 1 DTXC1547
2 5x11mm Driveshaft 1 DTXC1547
2 8x12mm Differential 1 DTXC1581
2 5x10mm Front Uprights 1 DTXC1535
2 5x10mm Rear Uprights 1 DTXC1535
