Tamiya TAM58391
$272.30
in stock? NO
This item is on back-order. It's difficult to know when it will be available to ship.1:10 Scale Hotshot 4WD Buggy

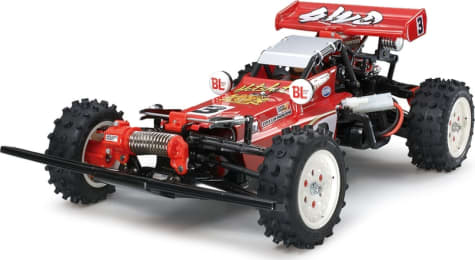

This is the 1/10 scale electric powered, radio controlled, re-release
of the 1985 Tamiya Hotshot Off-Road Buggy Kit.
Drive: Four wheel shaft drive with dogbone type linkage
Motor: Type 540 with aluminum heat sink and connectors
Electronic Speed Control: Tamiya TEU-101BK w/reverse (TAMM3194)
Shocks: Front and rear mono type horizontally mounted
Gearboxes: Sealed
Differentials: Planetary gear
Transmission: Single-speed
Tires: Spike, Front 3" (77mm) diameter, 1.1" (28.5mm) wide
Rear 3" (77mm) diameter, 1.4" (37mm) wide
Wheels: Nylon resin, White in color
Front 1" (25.4mm) wide, 2" (51mm) diameter
Rear 1.3" (33mm) wide, 2" (51mm) diameter
Bumpers: Front plastic
Suspension: Four wheel double wishbone
Camber Tie Rods: Non-adjustable
Steering Tie Rods: Adjustable
Steering: Bell crank type with servo saver
Electronic Speed Control, body, tires, wheels, 13 and 15 tooth
tooth pinion gears, spur gear, instructions and decal sheet
Radio Batteries: (8) AA size
Battery: 6-cell w/standard connector
Charger: AC/DC Timed or Peak for 6-cell battery
Paint: Polycarbonate safe spray or brush-on
Misc. Items: Building and track equipment
length: 15.3" (390mm)
width: 9.2" (235mm)
height: 5.9" (150mm)
Weight: 2.8lbs (1270g) approximately
Gear Ratio: 10.43:1 with 13T pinion gear
8.704:1 with 15T pinion gear
BODY-
length: 8.7" (220mm)
width: 3.7" (95mm) at rear wheels (widest point)
3.1" (80mm) at front wheels (thinnest point)
height: 2.3" (59mm)
Qty. Size Location Qty. Bearing Set
1 5x11mm Rear Gear Assembly 1 DTXC1547
1 5x8mm Rear Gear Assembly 1 DTXC1523
Body pictured on the box is painted Red with decals applied
jxs 5/23/06
ir/jxs
&
of the 1985 Tamiya Hotshot Off-Road Buggy Kit.
FEATURES:
Chassis: Monocoque ABS Resin Drive: Four wheel shaft drive with dogbone type linkage
Motor: Type 540 with aluminum heat sink and connectors
Electronic Speed Control: Tamiya TEU-101BK w/reverse (TAMM3194)
Shocks: Front and rear mono type horizontally mounted
Gearboxes: Sealed
Differentials: Planetary gear
Transmission: Single-speed
Tires: Spike, Front 3" (77mm) diameter, 1.1" (28.5mm) wide
Rear 3" (77mm) diameter, 1.4" (37mm) wide
Wheels: Nylon resin, White in color
Front 1" (25.4mm) wide, 2" (51mm) diameter
Rear 1.3" (33mm) wide, 2" (51mm) diameter
Bumpers: Front plastic
Suspension: Four wheel double wishbone
Camber Tie Rods: Non-adjustable
Steering Tie Rods: Adjustable
Steering: Bell crank type with servo saver
YOU WILL RECEIVE:
Tamiya Hotshot buggy with two shocks, 540 motor, heat sink Electronic Speed Control, body, tires, wheels, 13 and 15 tooth
tooth pinion gears, spur gear, instructions and decal sheet
REQUIREMENTS:
Radio: 2-Channel with 2 Servos Radio Batteries: (8) AA size
Battery: 6-cell w/standard connector
Charger: AC/DC Timed or Peak for 6-cell battery
Paint: Polycarbonate safe spray or brush-on
Misc. Items: Building and track equipment
SPECIFICATIONS:
VEHICLE- length: 15.3" (390mm)
width: 9.2" (235mm)
height: 5.9" (150mm)
Weight: 2.8lbs (1270g) approximately
Gear Ratio: 10.43:1 with 13T pinion gear
8.704:1 with 15T pinion gear
BODY-
length: 8.7" (220mm)
width: 3.7" (95mm) at rear wheels (widest point)
3.1" (80mm) at front wheels (thinnest point)
height: 2.3" (59mm)
COMMENTS:
For Replacement Ball Bearings use: Qty. Size Location Qty. Bearing Set
1 5x11mm Rear Gear Assembly 1 DTXC1547
1 5x8mm Rear Gear Assembly 1 DTXC1523
Body pictured on the box is painted Red with decals applied
jxs 5/23/06
ir/jxs
&
