RC Lights RCL5034

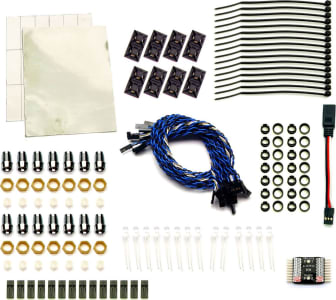

Switching Head & Electronic Brake Lights 5mm 14. This LED lighting kit allows you to install 4 white dual headlights, 4 white auxiliary lights switchable from channel 3, 2 blue adjustable intensity fog lights, and 4 red dual-intensity electronic brake lights to any 1/12 to 1/8 size R/C car. If you only have a 2 channel setup it thoughtfully comes with an included DELUXBRAKE - 14 LED controller. This controller has headlight strobe, auxiliary switch, and EBS functionality built right in for a streamlined installation of a common setup for R/C cars & trucks. Powered directly from the RX throttle & auxiliary channels using the included RX Pass-Thru. To change headlight or tail light colors use 5mm or 3mm LEDs. Everything needed for a complete installation is included with every lighting system. Included Items: Instruction Set (1) DELUXBRAKE 14 LED controller (1) RX Pass-Thru (1) 2-Channel RX Plug (14) 14" wire extensions (8) 5mm white headlights (2) 5mm blue fog lights (4) 5mm red brake lights (14) chrome 5mm LED holders (14) standard 5mm LED holders (14) 2P connector housings (1) 1.25"x0.5" aluminum tape x18 (1) 3.75"x3" aluminum tape (16) zip ties & bases
SYSTEM CURRENT DRAW (@6V): 170mA with brake lights dim, auxiliary lights ON; 230mA with brake lights engaged (A standard servo draws approx. 350mA) LED Controller INPUT VOLTAGE: 3.6-7.4V [6V Optimal] Typical Output Current(per LED channel): 20-30mA
1.65" x 1.0" x 0.25" Blue, Green, White, White Strobe, Red Strobe LEDs FORWARD VOLTAGE: 3.2V MAX CURRENT: 30mA Amber, Red LEDs FORWARD VOLTAGE: 1.9V MAX CURRENT: 30mA. FOR YOUR SAFETY ATTENTION WARNING DO NOT LOOK DIRECTLY INTO LIGHTS
