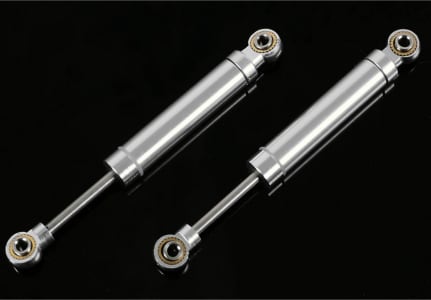

RC4WD 80mm Ultimate Scale Shocks for a scale look and function on most 1/10th scale vehicles
- CNC machined aluminum construction
- Heat treated steel internal coil spring (Super soft)
- Steel pivot balls with brass bushings
- Natural aluminum finish
- Oil-less design
- Double seal bottom end
- Two (2) assembled shocks
- Weight: 12g (0.42oz)
- Hole-to-hole (Compressed): 61.8mm (2.43 inch)
- Hole-to-hole (Extended): 82.1mm (3.23 inch)
- Overall length: 90.6mm (3.57 inch)
- Travel length: 20.3mm (0.80 inch)
- Shock body diameter: 8.8mm (0.35inch)
- Shaft diameter: 3.0mm (0.12inch)
- Pivot ball hole: 3.0mm (0.12 inch)
- These shocks do not use oil. Use only a small amount of oil to keep the shaft lubricated.
- These shocks have very fine shock cap threads. Please exercise careful attention while installing the shock caps to avoid cross-threading and
stripping the threads.
description revised by: SN May 13, 2015
