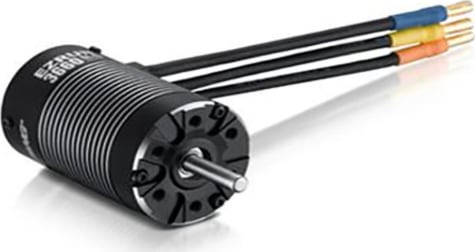

Hobbywing HWI30402650

- Innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented) with low cogging effect and torque pulsation greatly improves control feel around corners.
- Built-in temperature sensor and sensor port protect the motor from damage due to overheat when pairing EZRUN 3660 G2 with a EZRUN MAX10 SCT ESC.
- O-ring seal fitted between the front end bell and motor case isolates screw holes from inner parts to prevent liquid or dust from getting inside and protect motor from damage.
- Special design implemented by the motor case (the end attaches to the front end bell) isolates inner coils from outside to protect winding from being damaged by overlong screws.
- Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).
- CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alum steel output shaft, high-precision bearings for high durability and smoothness.
- Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
- Excellent match between EZRUN 3660 G2 with EZRUN MAX10 SCT guarantees users large torque plus a very smooth and linear power band.

Type:
Scale: 1/10th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensorless
Pole Count: 4
Relevant Parameters:
KV Rating: 3200
LiPo Cells: 2-3S
No Load Current (A): 4.9V
Size & Weight:
Outer Diameter: 36mm
Length: 60mm
Shaft Diameter: 5mm
Weight: 262 grams
Other Parameters:
Timing: 0
Applications: 1/10 short course truck, truck, monster truck (4wd)
