Product Summary:
User level: RTR, *requires additional parts/components (requires X4 AA for transmitter)
Mode: Off-Road, *4WD
Scale: 1:8
Type: Buggy, *dirt/clay
Power: LiPo, X2 *2-cell
Radio: Transmitter included
Battery: Not included, * 2x T-plug style connector
Speed Controller: included
Motor: included - 1:8 size
Includes charger: No

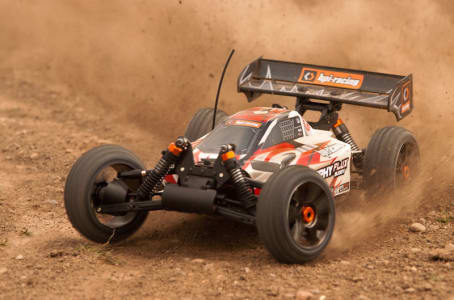

HPI brand brushless electric powered, 2.4GHz radio controlled, ready to run
1/8 scale Trophy Flux Buggy Racer from HPI.
Chassis: 6061 aluminum 0.16 (4mm) thick with front and rear metal
rod braces
Drive: Four wheel shaft, with steel outdrives and axles
Motor: Flux Scream brushless 1965kV
ESC: Flux Rage, handles two 2S batteries for up to 4S (14.4V) of
power
Radio: 3-channel 2.4GHz with end point adjustment, servo reversing,
steering dual rate, failsafe and waterproof servo for steering
Radio Tray: Low profile aluminum
Differentials: Bevel Gear type with four internal gears for increased
durability
Shocks: Oil-filled, aluminum body
Shock Towers: 6061 aluminum
Suspension: Extra long arms for greater stability and thick
suspension pins for greater resistance against crash damage
Steering: Bellcrank type with cast aluminum knuckles and servo saver
Body: Painted and trimmed
Bumpers: Front plastic
Wheels: Seven spoke 1.6 (41.8mm), 2.4 (60mm) diameter, 17mm hex
Tires: Hot Bodies Proto, 1.6 (40mm) wide, 4.3(110mm) diameter
Ball Bearings: Full set
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to
the chassis
Camber: Adjustable front and rear, camber refers to the angle of the
tops of the tires from vertical when viewed from front or behind
vehicle
Warranty: Two year limited, valid only in the USA, Canada and South
America
RTR 1/8 scale Trophy Flux Buggy Racer with brushless Motor, ESC,
Body, Decals, 3-channel 2.4GHz Radio and 4 AA Batteries and
Instruction Manual
Batteries: Two 2S LiPo batteries with T-plug style connector
Battery Charger: For selected batteries
Maintenance and track equipment
Vehicle-
length: 20.3 (518mm)
width: 11.8 (300mm)
height: 7.1 (180mm)
Wheelbase: 13.1 (333mm)
Track: 11 (280mm) outer edges of tires, side-to-side
Body-
length: 13.1 (333mm)
width: 7.9 (200mm) at widest point
height: 4 (102mm)
For replacement or to upgrade to ball bearings use:
Qty. Size Location Qty. Bearing Set
3 8x16mm Fr Diff 2 DTXC1585
3 8x16mm Rear Diff 2 DTXC1585
2 8x16mm Rear Gearbox 1 DTXC1585
4 8x16mm Rear Hubs 2 DTXC1585
2 8x16mm Rear Gearbox 1 DTXC1585
2 8x16mm Front Gearbox 1 DTXC1585
4 8x16mm Front Hubs 2 DTXC1585
4 6x10mm Steering 2 DTXC1561
