Futaba FUT01004347-3
$217.99
in stock? YES
3pv R304sb 3pv W/R304sb Rx Telemetry Tfhss

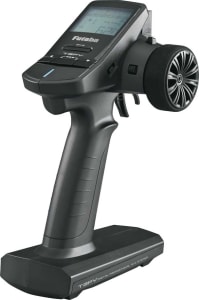

This is the Futaba 3PV 3-Channel Telemetry Radio System
with the 4-Channel R304SB T-FHSS Telemetry Receiver.
**Additional Technical Info Will Be Added When It Becomes Available. **
Large, easy to read programming screen
Four wheel steering and brake mixing
Model data copy
Anti-lock brake system (ABS) function
R304SB telemetry receiver
Link Mode
DT3 selection
SW1
Throttle fail safe
Steering and throttle trim
Channel 4 trim
Sub trim
Steering dual rate adjustment
Steering and throttle end point adjustment
Channel 3 and 4 end point adjustment, and servo reversing
Steering and throttle exponential
Auto power off after ten minutes
Futaba HT5F1800B 6V NiMh pack FUTM1482, or the Hobbico LiFe 6.6V
1900mAh pack, HCAM6521
R304SB Receiver; FUTL7680
Power Requirement: 4.8 - 7.4V battery (dry cells cannot be used)
Receiving Frequency: 2.4GHz
System: T-FHSS (auto detection) with SBUS2 port
Weight: 0.23oz (6.6g)
Antenna length: 7.5" (190.5mm)
jxs 04/28/16
&
with the 4-Channel R304SB T-FHSS Telemetry Receiver.
**Additional Technical Info Will Be Added When It Becomes Available. **
FEATURES:
FHSS/S-FHSS/T-FHSS protocols Large, easy to read programming screen
Four wheel steering and brake mixing
Model data copy
Anti-lock brake system (ABS) function
R304SB telemetry receiver
Link Mode
DT3 selection
SW1
Throttle fail safe
Steering and throttle trim
Channel 4 trim
Sub trim
Steering dual rate adjustment
Steering and throttle end point adjustment
Channel 3 and 4 end point adjustment, and servo reversing
Steering and throttle exponential
Auto power off after ten minutes
YOU WILL RECEIVE:
Futaba 3PV 3-CH Transmitter, 4-CH R304SB T-FHSS Telemetry ReceiverREQUIREMENTS:
AA Batteries: Four for transmitter (may also be powered by the Futaba HT5F1800B 6V NiMh pack FUTM1482, or the Hobbico LiFe 6.6V
1900mAh pack, HCAM6521
SPECIFICATIONS:
Transmitter; R304SB Receiver; FUTL7680
Power Requirement: 4.8 - 7.4V battery (dry cells cannot be used)
Receiving Frequency: 2.4GHz
System: T-FHSS (auto detection) with SBUS2 port
DIMENSIONS:
1.38 x 0.91 x 0.33" (35.1 x 23.2 x 8.5mm) Weight: 0.23oz (6.6g)
Antenna length: 7.5" (190.5mm)
jxs 04/28/16
&
