Fantom Racing FAN24020
$199.99
in stock? NO
This item is on back-order. It's difficult to know when it will be available to ship.alternate part numbers:

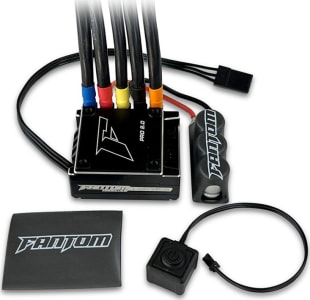

Fr-10 2.0 Pro 1:10 Scale Esc 160a
When we set out to release a new product, our goal has always been to offer our customers the very best products possible and its no exception with our new FR-10 2.0 Pro ESC. We live, breath, eat and sleep R/C racing, and we love our customers to have an edge over their competition. From our highly sought after brushless racing motors and batteries to our proprietary motor tuning tools, since 1980, racers have counted on us for the highest performance products in R/C!
To continue our tradition of excellence, countless hours have gone into R & D, to bring you a professional racing ESC, second to none in performance and value! The heart of the FR-10 2.0 PRO is the high-performance 32-bit CPU and proprietary firmware, providing you with buttery smooth throttle response, unmatched power delivery, and all the adjustable parameters youve come to expect from a pro racing ESC!
WHATS NEW WITH THE FR-10 2.0 PRO:
NEW Bluetooth programmable allows customizing the parameter settings and firmware upgrades via our free Apple or Android App, HERE! (requires Bluetooth Programming Module sold separately HERE)
NEW Supports real time programming. No need restart the ESC after adjusting any parameter.
NEW Plenty of updated and new adjustable parameters, for fine-tuning, for every type of racing.
NEW 32-bit microprocessor supports more powerful processing capability and more accurate motor output.
NEW Enhanced throttle response, braking, acceleration, linearity, and drive ability.
NEW Multiple protection
NEW Removable ON/OFF button harness (included) + on-board ON/OFF button.
NEW 25mm Fan and Aluminum Fan Cover sold separately, so that you dont have to pay for them unless you want them.
1:10 Scale / 2-3 Cell / 160 Amp
Specifically designed for the highest level of spec and mod 1:10 racing
2, 303 Strand, 11awg, Ultra Low Resistance Wire
CNC Machined Aluminum Case w/ Integrated Heat Sink
Ultra-Low Resistance FET Board
3 Max Power Capacitors
Heavy-Duty Solder Posts
Precision Throttle & Brake Frequency Adjustment
25mm Fan sold separately HERE
Aluminum Fan Cover sold separately HERE
Ultra Precision Throttle, Brake, and Punch Control
Bluetooth programmable allows customizing the parameter settings and firmware upgrades via our free Apple or Android App requires Bluetooth Programming Module sold separately
ROAR Approval Pending
Burst Current: 760 Amps
32-bit high-performance CPU
Battery Input: 2-3 cell LiPo
BEC Output: 6.0V, 7.4V / 6A (Switch BEC)
Weight without wiring and fan: 96 grams
Programmable with our free Apple or Android App
Sensored: Yes
Sensorless: Compatible but not optimal
Motor Limit: 2S LiPo / 4.5T 540 or 3S LiPo / 6.5T 540
INCLUDED IN BOX:
FR-10 2.0 PRO ESC
2 x 165mm Input Wires 11awg / 2, 303 strand super-flex high performance wire (pre-soldered on ESC)
3 x 165mm Output Wires 11awg / 2, 303 strand super-flex high performance wire (pre-soldered on ESC)
3 Integrated Max Power Capacitors
Shrink Tube w/ Fantom logo
To continue our tradition of excellence, countless hours have gone into R & D, to bring you a professional racing ESC, second to none in performance and value! The heart of the FR-10 2.0 PRO is the high-performance 32-bit CPU and proprietary firmware, providing you with buttery smooth throttle response, unmatched power delivery, and all the adjustable parameters youve come to expect from a pro racing ESC!
WHATS NEW WITH THE FR-10 2.0 PRO:
NEW Bluetooth programmable allows customizing the parameter settings and firmware upgrades via our free Apple or Android App, HERE! (requires Bluetooth Programming Module sold separately HERE)
NEW Supports real time programming. No need restart the ESC after adjusting any parameter.
NEW Plenty of updated and new adjustable parameters, for fine-tuning, for every type of racing.
NEW 32-bit microprocessor supports more powerful processing capability and more accurate motor output.
NEW Enhanced throttle response, braking, acceleration, linearity, and drive ability.
NEW Multiple protection
FEATURES:
Low voltage cut-off protection, over-heat protection, and throttle signal loss protection. NEW Removable ON/OFF button harness (included) + on-board ON/OFF button.
NEW 25mm Fan and Aluminum Fan Cover sold separately, so that you dont have to pay for them unless you want them.
FEATURES:
All R & D Done in the USA1:10 Scale / 2-3 Cell / 160 Amp
Specifically designed for the highest level of spec and mod 1:10 racing
2, 303 Strand, 11awg, Ultra Low Resistance Wire
CNC Machined Aluminum Case w/ Integrated Heat Sink
Ultra-Low Resistance FET Board
3 Max Power Capacitors
Heavy-Duty Solder Posts
Precision Throttle & Brake Frequency Adjustment
25mm Fan sold separately HERE
Aluminum Fan Cover sold separately HERE
Ultra Precision Throttle, Brake, and Punch Control
Bluetooth programmable allows customizing the parameter settings and firmware upgrades via our free Apple or Android App requires Bluetooth Programming Module sold separately
ROAR Approval Pending
SPECIFICATIONS:
Continuous Current: 160 AmpsBurst Current: 760 Amps
32-bit high-performance CPU
Battery Input: 2-3 cell LiPo
BEC Output: 6.0V, 7.4V / 6A (Switch BEC)
DIMENSIONS:
(L) 37mm x (W) 38.2mm x (H) 31.5mmWeight without wiring and fan: 96 grams
Programmable with our free Apple or Android App
Sensored: Yes
Sensorless: Compatible but not optimal
Motor Limit: 2S LiPo / 4.5T 540 or 3S LiPo / 6.5T 540
INCLUDED IN BOX:
FR-10 2.0 PRO ESC
2 x 165mm Input Wires 11awg / 2, 303 strand super-flex high performance wire (pre-soldered on ESC)
3 x 165mm Output Wires 11awg / 2, 303 strand super-flex high performance wire (pre-soldered on ESC)
3 Integrated Max Power Capacitors
Shrink Tube w/ Fantom logo
