Castle Creations CSE060-0068-00
$104.95
in stock? NO
This item is on back-order. It's difficult to know when it will be available to ship.4-Pole Sensored Bl Motor 1406-1900kv 060-00068-00

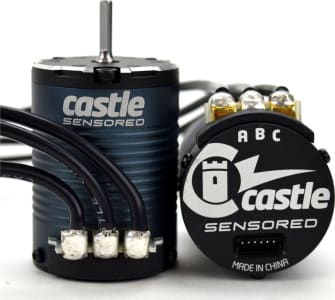

This is the Castle Creations 1406 4-Pole 1900Kv Sensored brushless Motor.
less than 8lbs (3.6kg), may also be used in more aggressive
setups in lighter 1/10 scale touring cars, stadium trucks or
buggies weighing up to 5lbs (2.3kg)
4 pole 12 slot design for high degree of efficiency and less heat
SMARTSENSE uses motor's sensors to provide smooth starts, excellent
torque and low-speed drivability-once motor is turning it
transitions to sensorless mode
ROAR standard sensor port and labeled connections
High performance 0.2mm steel lamination stacked stator
CNC machined anodized 6061 T-6 aluminum motor can and endbells
Rebuildable design allows replacement of front end bell/bearing
assembly or rotor/shaft assembly
Mamba Max Pro, Mamba X or Mamba Monster X
Kv: 1900
Max RPM: 100, 000
length: 1.9" (49.5mm)
diameter: 1.4" (36mm)
Weight: 6.9oz (197g)
Shaft length: 0.59" (15mm)
Shaft diameter: 1.8" (3.17mm)
Mounting Hole
Connectors: 4mm Male Castle Bullet Connectors attached to 13 gauge
wire
Sensor Wire length: 8.3" (210mm)
jxs 05/01/17
FEATURES:
For 1/10 scale rock crawlers using 3-4S LiPo batteries and weighing less than 8lbs (3.6kg), may also be used in more aggressive
setups in lighter 1/10 scale touring cars, stadium trucks or
buggies weighing up to 5lbs (2.3kg)
4 pole 12 slot design for high degree of efficiency and less heat
SMARTSENSE uses motor's sensors to provide smooth starts, excellent
torque and low-speed drivability-once motor is turning it
transitions to sensorless mode
ROAR standard sensor port and labeled connections
High performance 0.2mm steel lamination stacked stator
CNC machined anodized 6061 T-6 aluminum motor can and endbells
Rebuildable design allows replacement of front end bell/bearing
assembly or rotor/shaft assembly
YOU WILL RECEIVE:
1406 4-Pole 1900Kv Sensored brushless Crawler MotorREQUIREMENTS:
Electronic Speed Control such as the Castle Creations Mamba Micro X, Mamba Max Pro, Mamba X or Mamba Monster X
SPECIFICATIONS:
Input Voltage Range: 3-4SA LiPo Kv: 1900
Max RPM: 100, 000
length: 1.9" (49.5mm)
diameter: 1.4" (36mm)
Weight: 6.9oz (197g)
Shaft length: 0.59" (15mm)
Shaft diameter: 1.8" (3.17mm)
Mounting Hole
SPECIFICATIONS:
M3 @ 25mm Connectors: 4mm Male Castle Bullet Connectors attached to 13 gauge
wire
Sensor Wire length: 8.3" (210mm)
jxs 05/01/17
