Castle Creations CSE060-0056-00
$99.95
in stock? YES
4-Pole Sensored BL Motor 1406-4600Kv 060-0056-00

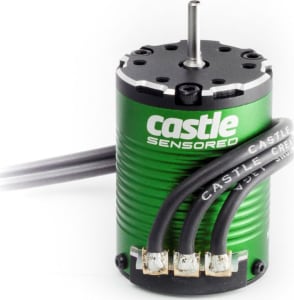

This is the Castle Creations 1406 4600Kv Sensored brushless Motor.
**NOT for use in 4WD short course trucks. **
1/10 scale 2WD stadium trucks and buggies on 2S for bashing and
limited runs on 3S LiPos with conservative gearing, also ideal for
1/10 scale on road cars running on 2S and 3S LiPo power
Four pole configuration for maximum efficiency at high RPM
Sensor Wire
Three 4mm Female Connectors
SV3, CSEM0115
Kv: 4600
Max. RPM: 100, 000
Max. Recommended Vehicle Weight: 5lbs (2278g) with battery RTR
length: 1.9" (49.5mm)
diameter: 1.4" (36mm)
Weight with Wires: 6.9oz (197g)
Shaft diameter: 1/8" (3.17mm)
Shaft length: 0.59" (15mm)
Mounting Hole
Connectors: 4mm Male Castle Bullet
jxs 12/23/16
ir/jxs
**NOT for use in 4WD short course trucks. **
FEATURES:
For 2WD short course trucks on 2S LiPos geared conservatively, 1/10 scale 2WD stadium trucks and buggies on 2S for bashing and
limited runs on 3S LiPos with conservative gearing, also ideal for
1/10 scale on road cars running on 2S and 3S LiPo power
Four pole configuration for maximum efficiency at high RPM
YOU WILL RECEIVE:
1406 4600Kv Sensored brushless Motor Sensor Wire
Three 4mm Female Connectors
REQUIREMENTS:
Electronic Speed Control such as the Castle Creations Sidewinder SV3, CSEM0115
SPECIFICATIONS:
Input Voltage Range: 2-3S LiPo Kv: 4600
Max. RPM: 100, 000
Max. Recommended Vehicle Weight: 5lbs (2278g) with battery RTR
length: 1.9" (49.5mm)
diameter: 1.4" (36mm)
Weight with Wires: 6.9oz (197g)
Shaft diameter: 1/8" (3.17mm)
Shaft length: 0.59" (15mm)
Mounting Hole
SPECIFICATIONS:
M3 @ 25mm Connectors: 4mm Male Castle Bullet
jxs 12/23/16
ir/jxs
