Axial Racing AXI90075

Chassis: Scale steel C-channel side rails with adjustable body mount adjustable CMS (Chassis Mounted Servo) system (servo not included)
Drive: Four wheel with WB8 HD Wild Boar driveshafts with center splined slider to reduce flex and fatigue, three-piece driveshaft with strengthened slider-floater tube, AR44 single universal joint steel axles for up to 45 steering angleTransmission: New scale appearance-sits lower in the chassis for greater efficiency, two-speed gear set for a servo activated low/high range (servo not included)
Slipper Clutch: Uses pad on each side of spur gear for added surface
area and precise tuning and holding power, 32 pitch gearing for high torque applications
Body: Molded polycarbonate, requires painting and trimming, military based cab forward design, front end configuration enables vehicle to take on steep inclines, eight LED light mounting locations, four in front grille, two in front bumper and two in rear frame plate (LED lights not included, sold separately) Rear Cage Hinge System allows easy chassis access by removing two body clips under the cab
Shocks: Oil-filled, aluminum body, white springs
Suspension: Optimized suspension geometry with integrated mounts upper and lower aluminum links, 4-link design reduces axle steer and torque twist, and guards against suspension wrap-up in high-power applications, all metal links
Steering: Universal joint axles allow up to 45 of steering
Tires: MT45 big block symmetrical pattern, R35 (sticky) firmness compound, foam inserts, functional spare tire
Wheels: MW19 three-piece black plastic beadlock, 12mm hex

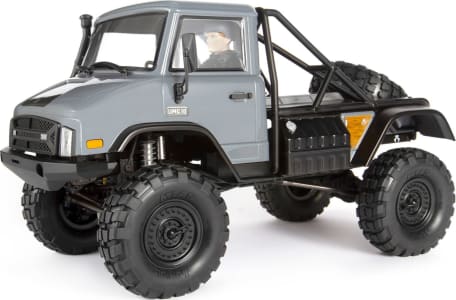

Axial 1/10 scale electric powered 4WD SCX10 II UMG10 Crawler with
Body, Interior Details, Decals, Wheels, Tires with functional
Spare, waterproof Receiver Box and Instruction Manual
Radio: 2-channel with high-torque steering servo
Motor: 540 size
Electronic Speed Control: To match selected battery
Battery: 7.4V 2S LiPo or 7.2V NiMh stick pack
Battery Charger: To match selected battery
LiPo charging bag (if using LiPo battery) paint, building and track equipment
length: 17.9 inch (455mm)
width: 9.1 inch (230mm)
height: 9.6 inch (245mm)
Wheelbase: 11.4 inch (288mm)
Track: 9.1 inch (230mm) distance between outer edges of tires measured side-to-side
Maximum Battery size 5.75 x 1.2 inch (147 x 32mm)
Tire diameter: 4.6 inch (117mm)
Tire width: 1.4 inch (35.6mm)
description revised by: DB April 30, 2019
