Axial Racing AXI03004B

Newly designed transmission with Dig function enables a tighter turning radius by locking the rear axle for FWD power only.
Currie F9 Portal Axles increase ground clearance at the diff pumpkin for the best crawling performance.
Includes all-metal gears, from the center transmission to the lockers and portal axles.
Tube chassis design offers optimum clearance plus realistic scale looks.
All pivot points are on stainless steel balls for a durable, long-lasting suspension point.
Includes injection-molded, 3-piece, licensed Raceline beadlock wheels.
Adjustable oil-filled shocks feature hard anodized, threaded shock bodies, a single coilover spring, and a cap with a bleed port.
All-metal front universal axles provide smooth action and 45 degrees of steering angle for an efficient, high-performance drivetrain.
Durable, machined aluminum universal.
Finely tuned suspension geometry delivers the best crawling capabilities

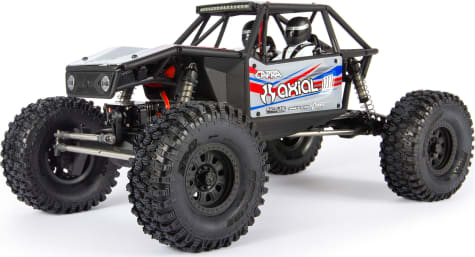

The Axial Capra 1.9 Unlimited Trail Buggy Builder's Kit is a "new from the ground up" design that any advanced RC enthusiast eager for cutting-edge crawling will appreciate. Its Currie F9 Portal Axles provide extra ground clearance at the diff pumpkin for the best crawling performance. With the included Dig transmission, you can also switch on the fly between 4WD and FWD directly from your 3-channel transmitter locking the rear axle whenever you need the tighter turning radius of front drive power. The Capra features a realistic tube chassis design and metal gears everywhere, from the center transmission to the lockers and portal axles. It rides on licensed Raceline 3-piece molded beadlock wheels that can be fitted with whatever 1.9 tires you prefer. For pioneering performance in an RC trail buggy kit, choose the Axial Capra.
Approximate Assembly Time
7-10 Hours
Ball Bearings
Full set
Battery
Sold Separately
Body
Unpainted panels
Brakes
Integral with ESC
Bushing Material
Metal
Charger
Sold Separately
Chassis
Injection molded tubular
Completion Level
Kit
Differential
Locked
Drivetrain
4WD
Final Drive Ratio
37:1
Front Track
8.75 in (222.2mm)
Gear Pitch
32-Pitch
Ground Clearance
3" (76.2mm)
Internal Gear Ratio
5.14:1
Max Battery Dimensions
1.02 x 3.8 x 1.8" (26 x 98 x 47mm)
Motor Size
540 sold separately
Pinion
14T
Power Type
Electric
Product Height
8.25" (210 mm)
Product Length
17" (432 mm)
Product Weight
4lbs (1.8kg)
Product Width
10.25" (260 mm)
Radio
Sold Separately
Rear Track
8.75 in (222.2mm)
Receiver
Sold Separately
Scale
1/10
Shock Type
Aluminum body, oil-filled, coil-over spring, soft and firm springs included
Speed Control
Sold Separately
Steering Type
2WS
Suspension
4-link with stainless steel pivot balls
Tire Compound
Tires sold separately
Vehicle Type
Rock Crawler
Water-Resistant
Yes
Wheel Width
1" (25.4mm)
Wheelbase
12.5" (318 mm)
