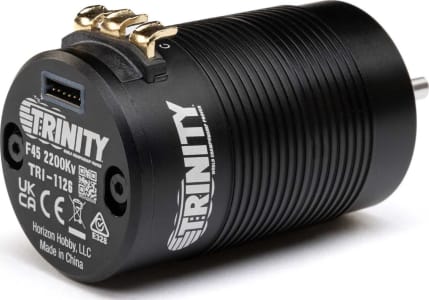

Trinity F45 brushless Race Motors deliver the muscle you need to make your 1/8 scale buggy or truggy perform like a champion. With 2S-6S LiPo power compatibility, these motors produce high rpm with exceptional efficiency. These power units also offer smooth acceleration and predictable low-speed drivability due to their sensored design.
F45 brushless Race Motors offer a completely enclosed design, reducing your maintenance needs and giving them protection and durability to excel in demanding off-road environments. Other features include a 4-pole rotor for high torque, CNC-machined aluminum housing, insulated copper windings, steel 5mm output shaft, and smooth precision bearings.
Application
1/8 Scale Off-Road Vehicle
Bushing Or Bearing
Bearing
Maximum Continuous Current
50A
Motor Type
brushless
Number of Poles
4
Outer Diameter
1.6" (41 mm)
Power (watts)
2400 watts
Product Length
2.68" (68 mm)
Product Weight
10.2oz (290g)
RPM/Volt (Kv)
2200Kv
Shaft Diameter
0.19" (5 mm)
Thread Size
4xM4 and 4xM3 @ 25.4 Spacing Center to Center
Voltage
2S 6S LiPo (8.4V 25.2V)
