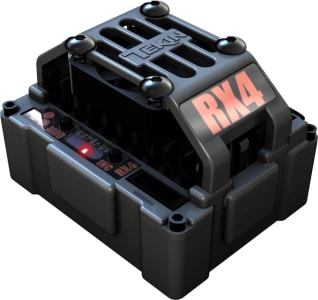

This is the Tekin RX4 Hard Box *Waterproof Electronic Speed Control.
Compatible with sensored/sensorless brushless and brushed motors
Recommended for 1.9 and 2.2 trail adventure and rock race vehicles
Thick-walled, reinforced Hardbox design that withstands the elements
and rough environments
High voltage, 6.0/7.4V @ 8A programmable BEC
HotWire PC Interface for advanced programming and updating with
EZ Access HotWire programming port (interface not included,
requires the TT1451 Tekin Hotwire 2.0, TEKM1451)
On-board temperature indicator
D2: Dual Drive Mode technology
Datalogging capability
Pit Tune Mode
DGF2: Digital Glitch Filtering V2
One-Touch Radio Calibration
180 day limited warranty through Tekin beginning at date of purchase
RX4 ESC with Cooling Fan, Receiver Connector and On/Off Switch
Tube of Dielectric Grease
Three 12AWG Motor and Battery Wires
Hotwire Connector (Hotwire interface not included)
Instruction Sheet
Motor and Battery Connectors of modeler's choice
Controls: Forward/Brake/Reverse
Input Voltage: 2S-6S LiPo
Motor Limit Brushed Mode: No Limit
Motor Limit brushless Mode: 2S - 5700kV 4-pole
3S - 3100Kv 4-pole
4S - 2300Kv 4-pole
5S - 1800Kv 4-pole
6S - 1200Kv 4-pole
Max Current: 240amps per phase
Timing Profiles: 7 choices (on board)
Brushed and brushless Modes: FWD Only / FWD-REV / FWD-REV Delay
1.6 x 2.0 x 1.4" (40.6 x 50.8 x 35.5mm)
*Waterproof in sensorless operation only. Dielectric Tek Grease
provided for waterproofing sensor ports.
Not intended for use when submerged in liquid.
