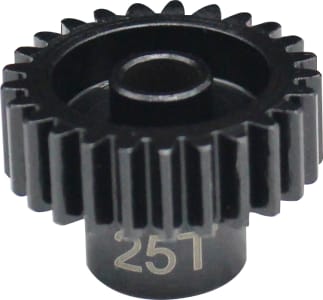

Hot Racing NSG3225
25t Steel 32p Pinion Gear 5mm Bore
Hot Racing hardened steel 25tooth, 32 pitch pinion gear for motors with a 5mm shaft
- Hardened steel to increased wear resistance and improve fatigue life
- Nitrided to enhanced hardness corrosion resistance
- One (1) M4x4mm setscrew
- Removable thread lock (ex. blue threadlocking compound) for setscrew
- Motor with 5mm shaft
- 32 pitch spur gear
- Tooth pitch: 32 pitch
- Tooth face width: 7mm
- length: 14.5mm
- For shaft: 5mm
0.8 module is the same as 32 standard pitch
FEATURES:
- CNC machined- Hardened steel to increased wear resistance and improve fatigue life
- Nitrided to enhanced hardness corrosion resistance
YOU WILL RECEIVE:
- One (1) pinion gear - One (1) M4x4mm setscrew
REQUIREMENTS:
- 2mm hex wrench to install setscrew- Removable thread lock (ex. blue threadlocking compound) for setscrew
- Motor with 5mm shaft
- 32 pitch spur gear
SPECIFICATIONS:
- Tooth count: 25- Tooth pitch: 32 pitch
- Tooth face width: 7mm
- length: 14.5mm
- For shaft: 5mm
COMMENTS:
0.8 module is the same as 32 standard pitch
