Hot Racing ECT48SH23
$10.88
in stock? YES

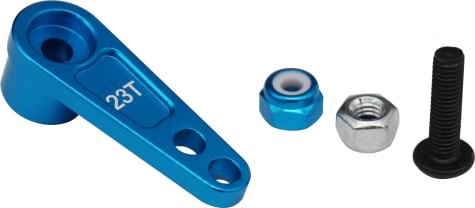

Aluminum Servo Arm 23T: ECX 1:10 2WD 4WD
Hot Racing single arm servo arm for ECX 1/10 2WD and 1/10 4WD
- Aluminum construction
- Anodized Blue
- For use with JR KO Airtronics and Sanwa brand servos with 23 tooth spline drive
- Two 3mm linkage hole
- One 4-40 mini lock nut (blue) (for 2WD)
- One M3 x 12mm screw (for 4WD)
- One M3 Lock nut (Silver) (for 4WD)
- 23 spline servo
-Distance Hole A: 18mm
-Distance Hole B: 16mm
-Total Thickness: 7.0mm
-Material: 6061-T6 Aluminum
-Spline: 23T
- Arm Thickness: ~4mm
- Total length: ~28mm
Comment
Replace part of ECX1028 or ECX 231013
Use it in 4WD you will not have servo saver function
FEATURES:
- Anodized Blue
- For use with JR KO Airtronics and Sanwa brand servos with 23 tooth spline drive
- Two 3mm linkage hole
YOU WILL RECEIVE:
- One (1) single arm servo(Blue)- One 4-40 mini lock nut (blue) (for 2WD)
- One M3 x 12mm screw (for 4WD)
- One M3 Lock nut (Silver) (for 4WD)
REQUIREMENTS:
SPECIFICATIONS:
-Distance Hole A: 18mm
-Distance Hole B: 16mm
-Total Thickness: 7.0mm
-Material: 6061-T6 Aluminum
-Spline: 23T
- Arm Thickness: ~4mm
- Total length: ~28mm
Comment
Replace part of ECX1028 or ECX 231013
Use it in 4WD you will not have servo saver function
