Hot Racing AES4808
Aluminum Ball Bearing Steering Kit - Sc18 18t2 18b2

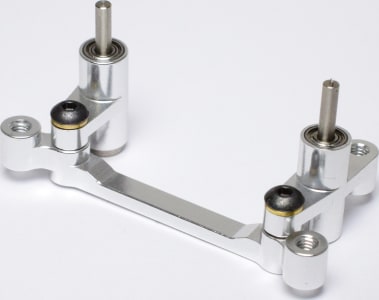

Hot Racing ball bearing steering kit for the 1/18 Team Associated RC18 Late Model, RC18B2, RC18T2, and SC18 - CNC machined 6061 aluminum, silver
- Ball bearing bellcranks
- Two (2) 2x20mm bellcrank pins
- Four (4) 2x5x2.5mm ball bearings
- Installing on the SC18 or 18T2
- Recommended to use a removable thread lock on screws
- Brass bushing total length: 3.7mm
- Brass bushing inner diameter: 2.6mm (for M2.5 screw)
- Brass bushing outer diameter: 3.3mm
- Brass bushing flange diameter: 4.5mm
- Brass bushing flange Thickness: 0.5mm
- Known to fit the following:
- RC18 Late Model
- RC18B2
- RC18T2
- SC18
description revised by: SN October 5, 2016
FEATURES:
- Ball bearing bellcranks
YOU WILL RECEIVE:
- One (1) steering system with bellcranks and center draglink rack- Two (2) 2x20mm bellcrank pins
- Four (4) 2x5x2.5mm ball bearings
REQUIREMENTS:
- Recommended to use a removable thread lock on screws
SPECIFICATIONS:
- Brass bushing inner diameter: 2.6mm (for M2.5 screw)
- Brass bushing outer diameter: 3.3mm
- Brass bushing flange diameter: 4.5mm
- Brass bushing flange Thickness: 0.5mm
COMMENTS:
- RC18 Late Model
- RC18B2
- RC18T2
- SC18
description revised by: SN October 5, 2016
